High quality bits with combination profile Phillips/slotted. In electrical applications screws with mixed geometry (slotted and Phillips cross-recess) are quite common. Bits having a PlusMinus profile are optimum for addressing these screws. Tough viscous for universal use. ¼“ hexagon, suitable for holders as per DIN ISO 1173-F 6.3. For PlusMinus screws (combination profile Phillips/slotted) Also for jobs on terminal blocks, fuse boxes, switches and relays Tough for hard materials 1/4” hexagon drive (Wera connecting series 4) Tough bits Tough Wera bits prevent the tip from breaking prematurely. Z-bits usually are the bit for universal screwdriving applications. Code mm inch mm 05059720001 # 1 70 2 3/4“ 4.5 05059721001 # 2 70 2 3/4” 6

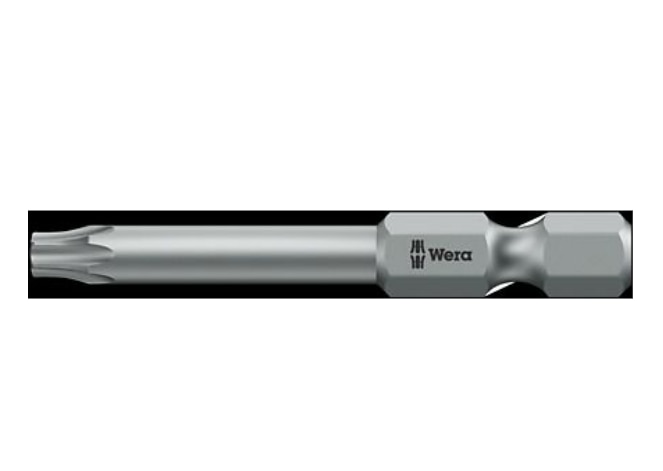

Premium bits for TORX BO socket screws. TORX® BO screws have a protruding pin in their drive profile. This prevents unauthorized loosening, as these screws cannot be operated with “normal” TORX tools. Only special TORX BO tools have a bore which can mount the pin. Tough, for universal use. 1/4“ hexagonal, suitable for holders as per DIN ISO 1173-F 6.3. For recessed TORX screws with securing pin TORX® bit with bore hole on the output side Tough for hard materials TORX with borehole (BO) TORX tools with a borehole prevent the unauthorised unfastening of safety screws. The screws contain a pin that protrudes into the drive profile so that ”normal“ TORX tools cannot be used. This pin fits into the borehole of TORX BO tools allowing safety screws to be unfastened. Tough bits Tough Wera bits prevent the tip from breaking prematurely. Z-bits usually are the bit for universal screwdriving applications. Tip Size Blade Length Blade Length Blade diameter Code mm inch mm 05060050001 TX 10 89 3 1/2” 4.0 05060051001 TX 15 89 3 1/2“ 4.0 05060052001 TX 20 89 3 1/2” 4.5 05060053001 TX 25 89 3 1/2“ 6.0 05060054001 TX 30 89 3 1/2” 6.0 05060056001 TX 40 89 3 1/2"

Wera Kraftform Plus 160i/6 Insulated Professional Screwdriver Set, 6-Piece Individual testing in a water bath at 10,000 volts so as to ensure safe working at the permitted voltage of 1,000 volts. Kraftform Plus handle for pleasant, ergonomic working that makes blisters and calluses a thing of the past. Hard gripping zones for high working speeds whereas soft zones ensure high torque transfer. Partially Lasertip: the tip literally bites itself into the screw head and prevents any slipping. 'Take it easy' Tool Finder: colour coding according to profile and size. The anti-roll feature prevents any bothersome rolling away at the workplace. Including a rack for storage. Product Description From the Manufacturer 160 i/6 Rack Screwdriver Set Kraftform Plus Series 100 + Rack Kraftform Plus screwdrivers enable a higher transfer of force with less effort, and relieve the entire hand-arm system - even with intensive use. In addition, the safety issue, always a top priority at Wera, is very much in focus for series 100 VDE screwdrivers. The quality of the blades exceeds current standards with regard to hardness and torque strength. Every tool is tested individually for dielectric strength under a load of 10,000 volts, so as to ensure safe working with loads up to 1,000 volts. The individual testing in a water bath at 10,000 volts, in accordance with DIN EN 60900 (IEC 60900:2004), ensures safe working with loads up to 1,000 volts. The outstanding design of the Kraftform handle ensures that it fits perfectly into the hand, preventing hand injuries such as blisters and calluses. The hard materials used for the handle ensure rapid hand repositioning, without any danger of the skin “sticking” to the handle. The softer “anti-slip” zones enable the low-loss transfer of high forces - resulting in less screwdriving effort being required. Impact strength tested at - 40°C. b>safety even under extreme conditions. The screw symbol and tip size identification markings on the handle make it easier to find the right screwdriver in the tool case or at the workplace. The key benefits: Insulated screwdriver set Wera Kraftform handle: ergonomic, multikomponent, anti-roll function Lasertip This Screwdriver sets is supplied with a rack that can be attached to the wall. German engineered This set contains: CODE 05006145006 160 i VDE 1 x 0.4x2.5x801) 1 x 0.6x3.5x100 1 1 x 0.8x4.0x100 1 x 1.0x5.5x125 162 i PH VDE 1 x PH 1x80 1 x PH 2x100 1) without Lasertip

Article description Premium Kraftform Plus screwdriver with electrician's blade. Multi-component Kraftform Plus handle for comfortable ergonomic screwdriving, which avoids blisters and calluses. Hard handle zones for high working speeds, while soft handle zones guarantee a high torque transfer. The tips of Wera Lasertip screwdrivers are microscopically roughened with laser beams. This rough surface “bites” into the screw head and unintentional slipping is a thing of the past. Take it easy tool finder with colour coding by profile and size stamping - for quick and easy identification of the required tool. The hexagon anti-roll protection avoids screwdrivers from rolling away annoyingly at the workplace. Code mm mm mm mm mm inch inch Blade thickness Blade Width Blade Length Handle Length Blade Diameter Blade Width Blade Length 05008061001 1.2 6.0 100 105 6.0 15/64“ 4” Slotted screwdriver -electrician's blade Multi-component Kraftform handle for fast and ergonomic screwdriving Take it easy tool finder: colour coding according to profile and size Hexagonal anti-roll feature against rolling away Lasertip tips for more secure fit in the screw head Kraftform Plus screwdrivers - ergonomics you can grasp. They relieve the entire hand-arm system even when used intensively. Along with other technical and product advantages such as the Lasertip for a secure fit in the screw head, Kraftform screwdrivers are the ideal choice whenever manual screwdriving jobs are concerned. Lasertip prevents slipping out It happens time and time again that the tip slips out of the screw head when screwdriving, sometimes damaging valuable surfaces or even causing injury. The tips of the Wera Lasertip screwdrivers are microscopically roughened by means of a laser. This rough surface literally “bites” itself firmly into the screw head. Slipping out becomes a thing of the past. Lasertip A precisely-focused laser creates a sharp-edged surface structure. Wera Lasertip “bites” itself into the screw head and prevents any slips out of the recess. It is available for screwdrivers for slotted, Phillips and Pozidriv screws. Reduced contact pressure Wera Lasertip reduces the contact pressure required and enhances force transfer - meaning less screwdriving effort is required. Screwdriving becomes safer and easier. Take it easy Tool Finder Screwdrivers with Take it easy tool finder: colour coding according to profile and size stamp. Kraftform The basic idea for the prototype of the Kraftform handle - that the hand should dictate the design - has, right through to today, proved to be correct. In cooperation with the internationally recognised Fraunhofer IAO Institute, Wera developed a screwdriver handle designed to match the shape of the human hand as long ago as the 1960s. After a long development phase, the Wera Kraftform handle was launched to the market in 1968. It has been optimised through the years with new technologies, but has kept its proven shape. After all, the human hand has not changed either. Prevents hand injuries The outstanding design of the Kraftform handle that fits perfectly into the hand prevents hand injuries such as blisters and calluses. Rapid hand repositioning The hard materials used for the handle ensure rapid hand repositioning without any danger of the skin “sticking” to the handle. The surrounding hard zones with large diameters glide like wheels through the hand.

Article description Tough Wera bits for slotted screws, for universal use. 1/4“ hexagonal, suitable for holders as per DIN ISO 1173-F 6.3. For slotted screws Tough for hard materials 1/4” hexagone drive (Wera connecting series 4) Tough-absorbing Bits Tough-absorbing Wera Bits (Z) Prevent any premature Breakage of the drive tip. Code mm mm mm inch mm 05059305001 0.5 3.0 50 2“ 3.0 05059450001 0.6 3.5 152 6” 3.5 05059451001 0.8 4.0 152 6“ 4.0 05059452001 1.0 5.5 152 6” 5.5 05059453001 1.2 6.5 152 6“ 6.2 05059500001 1.6 8.0 89 3 1/2” 8.0

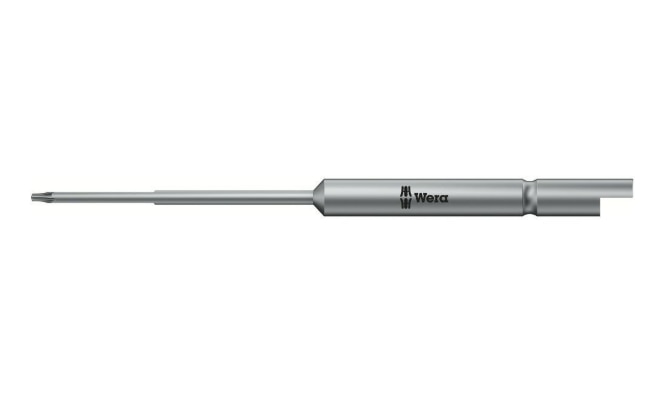

For TORX PLUS® screws 4 mm halfmoon drive (Wera connecting series 9) Ductile and tough for hard materials Suitable for Delvo, Densei, etc. A 5-flank TORX PLUS® profile. Tough viscous for universal use. Drive: 4 mm halfmoon for direct power tool insertion.

Article description Premium Kraftform Plus screwdriver. Multi-component Kraftform handle for fast and gentle work. Kraftform Plus: Hard handle zones for high working speeds, while soft handle zones guarantee a high torque transfer. The Wera Black Point tip and a sophisticated hardening process guarantee a long usability for the tip, increased corrosion protection and exact fitting accuracy. Take it easy tool finder with colour coding by profile and size stamping - for quick and easy identification of the required tool. The hexagon anti-roll protection avoids screwdrivers from rolling away annoyingly at the workplace. Screwdriver for recessed TORX screws Multi-component Kraftform handle for fast and ergonomic screwdriving Take it easy tool finder: colour coding according to profile and size Hexagonal anti-roll feature against rolling away The Wera Black Point tip offers an exact fit and optimum corrosion protection Kraftform Plus screwdrivers - ergonomics you can grasp. They relieve the entire hand-arm system even when used intensively. Along with other technical and product advantages such as the Lasertip for a secure fit in the screw head, Kraftform screwdrivers are the ideal choice whenever manual screwdriving jobs are concerned. Kraftform The basic idea for the prototype of the Kraftform handle - that the hand should dictate the design - has, right through to today, proved to be correct. In cooperation with the internationally recognised Fraunhofer IAO Institute, Wera developed a screwdriver handle designed to match the shape of the human hand as long ago as the 1960s. After a long development phase, the Wera Kraftform handle was launched to the market in 1968. It has been optimised through the years with new technologies, but has kept its proven shape. After all, the human hand has not changed either. Rapid hand repositioning The hard materials used for the handle ensure rapid hand repositioning without any danger of the skin “sticking” to the handle. The surrounding hard zones with large diameters glide like wheels through the hand. Large contact area The large contact area - with particularly high friction to the soft zones - results in high torque transfer without any bruising from the edges. Non-roll feature The hexagonal non-roll feature prevents any rolling away at the workplace. Identification marking The screw profile and tip size identification markings on the handle make it easier to find the right screwdriver in the tool case, or at the workplace. Wera Black Point tip The Wera Black Point tip and a refined hardening process ensure long service life of the tip, improved corrosion protection and an exact fit. Code mm mm mm inch 05028000001 TX 5 60 70 3.5 2 3/8“ 05028001001 TX 6 60 70 3.5 2 3/8” 05028002001 TX 7 60 70 3.5 2 3/8“ 05028003001 TX 8 60 81 3.5 2 3/8” 05028005001 TX 10 80 81 4.0 3 1/8“ 05028010001 TX 20 100 98 4.5 4”

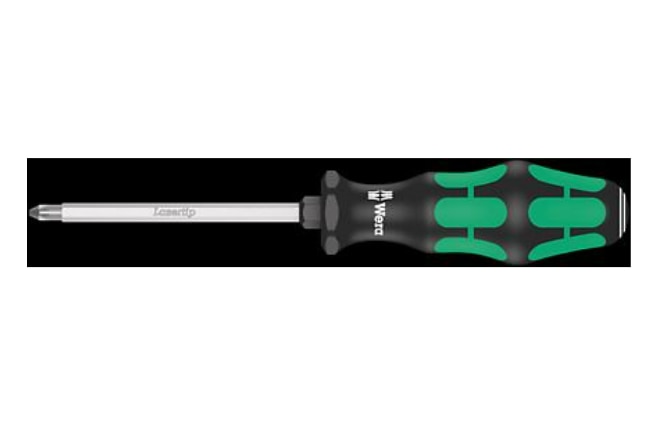

Article description Premium Kraftform Plus screwdriver by Wera. Hard handle zones for high working speeds, soft handle zones for a high torque transfer and for fast and smooth work. The tips of Wera Lasertip screwdrivers are microscopically roughened with laser beams. This rough surface “bites” into the screw head and unintentional slipping is a thing of the past. “Take it easy” tool finder with colour coding by profile and size stamping - for quick and easy identification of the required tool. The hexagon anti-roll protection avoids bits from rolling away annoyingly at the workplace. Screwdriver, for cross-recess screws, Pozidriv Multi-component Kraftform handle for fast and ergonomic screwdriving “Take it easy” tool finder. colour coding according to profile and size Hexagonal anti-roll feature against rolling away Lasertip tips for more secure fit in the screw head Kraftform Plus screwdrivers - ergonomics you can grasp. They relieve the entire hand-arm system even when used intensively. Along with other technical and product advantages such as the Lasertip for a secure fit in the screw head, Kraftform screwdrivers are the ideal choice whenever manual screwdriving jobs are concerned. Lasertip prevents slipping out It happens time and time again that the tip slips out of the screw head when screwdriving, sometimes damaging valuable surfaces or even causing injury. The tips of the Wera Lasertip screwdrivers are microscopically roughened by means of a laser. This rough surface literally “bites” itself firmly into the screw head. Slipping out becomes a thing of the past. Lasertip A precisely-focused laser creates a sharp-edged surface structure. Wera Lasertip “bites” itself into the screw head and prevents any slips out of the recess. It is available for screwdrivers for slotted, Phillips and Pozidriv screws. Reduced contact pressure Wera Lasertip reduces the contact pressure required and enhances force transfer - meaning less screwdriving effort is required. Screwdriving becomes safer and easier. Kraftform The basic idea for the prototype of the Kraftform handle - that the hand should dictate the design - has, right through to today, proved to be correct. In cooperation with the internationally recognised Fraunhofer IAO Institute, Wera developed a screwdriver handle designed to match the shape of the human hand as long ago as the 1960s. After a long development phase, the Wera Kraftform handle was launched to the market in 1968. It has been optimised through the years with new technologies, but has kept its proven shape. After all, the human hand has not changed either. Rapid hand repositioning The hard materials used for the handle ensure rapid hand repositioning without any danger of the skin “sticking” to handle. The surrounding hard zones with large diameters glide like wheels through the hand. Non-roll feature The hexagonal non-roll feature prevents amy rolling away at the workplace. “Take it easy tool” finder Screwdrivers with “take it easy”tool finder:colour coding according to profile and size stamp. Code mm mm mm inch 05009315001 PZ 2 100 105 6.0 4“ 05009310001 PZ 1 80 98 4.5 3 1/8” 05009320001 PZ 3 150 112 8.0 6"

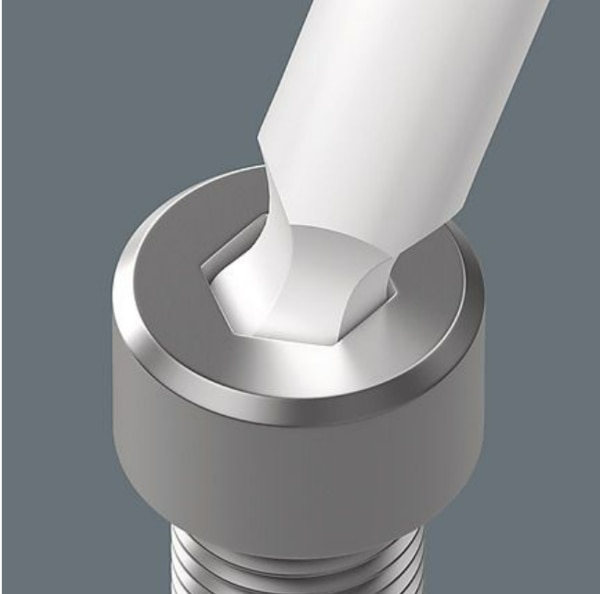

Article description Tough viscous Wera bits for hexagon socket screws and universal use. The ballpoint drive profile means that it is possible to swivel the tool axis away from the screwdriving axis, thus enabling “round the corner” screwdriving. ¼“ hexagon, suitable for holders as per DIN ISO 1173-F 6.3. Technical data Code 05380128001 5/32” 89 3 1/2“ 05380129001 3/16” 89 3 1/2“ 05380130001 7/32” 89 3 1/2“ 05380131001 1/4” 89 3 1/2“ 05380125001 7/64” 89 3 1/2“ 05380124001 3/32” 89 3 1/2“ 05380127001 9/64” 89 3 1/2“ For socket head screws Hexagon ballpoint for work in difficult installation situations Tough for hard materials 1/4” hexagon drive (wera connecting series 4)
