Kraftform Kompakt Micro set for precision mechanical work. Suitable for the take-up of bits with 4 mm halfmoon drive (Wera series 9) and bits with 4 mm HIOS drive (Wera series 21). Electrical surface resistance of ≤ 109 Ohm for secure protection against electrostatic charge. Manufactured in accordance with DIN EN 61340-5-1. Compact handle/interchangeable blade system for fast blade change. Kaftform Micro handle with twist cap and free-turning zone for rapid twisting, making any time-consuming repositioning of the fingers unnecessary. Power zone with integrated soft zones for the transfer of higher tightening and loosening torque. Precision zone directly above the blade for the right angle for adjustment work. Bits for manual as well as power tool operations. Rapid fixing of the bit: just push the bit into the insert for automatic locking and a secure fit. To change the bit, simply push the sleeve forward and remove. Free-turning sleeve for simple guidance of the tool during the screwdriving process. Bit holder suitable for the take-up of bits with 4 mm halfmoon or HIOS drive Handle out of material with a surface resistance of ≤ 109 Ohm Handle/Interchangeable blade system for rapid exchange of the blade Kraftform Micro handle with rotating cap for rapid spinning Bits for manual as well as power tool operations Kraftform Micro ESD bit holder Wera ESD Tools The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies. High protection The electric surface resistance of the Wera ESD material is ≤ 109 ohm. This securely protects components against electrostatic energy and associated damage. For Halfmoon and HIOS Bits Features a combination bit holder for both bits with Halfmoon and bits with HIOS drive. Kraftform Micro handle Multi-component screwdriver handle for ergonomic working. The precision zone The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work. The power zone The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw. Rotating cap and fast-turning zone The fast-turning zone just below the rotating cap allow rapid twisting. This makes time-consuming grip adjustments as with other conventional precision screwdrivers unnecessary. Kraftform Kompakt Micro 20 ESD 1, 20 pieces contents: 1013 Kraftform Micro ESD Bitholding screwdriver 05300004001 1 x 97 mm 851/9 C J PH bits, halfmoon 05135270001 1x PH 00 x 44 x 1.8 mm 1) 05135272001 1x PH 0 x 44 x 1.8 mm 2) 05135276001 1x PH 1 x 44 x 3 mm 1) 867/9 C TORX® bits, halfmoon 05135220001 1x TX 1 x 44 mm 05135221001 1x TX 2 x 44 mm 05135222001 1x TX 3 x 44 mm 05345352001 1x TX 4 x 44 mm 05345351001 1x TX 5 x 44 mm 05345350001 1x TX 6 x 44 mm 867/9 C IP TORX PLUS® bits 05135230001 1x 1 IP x 44 mm 05135231001 1x 2 IP x 44 mm 05135232001 1x 3 IP x 44 mm 05326310001 1x 4 IP x 44 mm 840/9 C bits Hex-Plus 05135268001 1x 1.5 x 44 mm 05135269001 1x 2 x 44 mm 800/9 C bits 05135265001 1x 0.23 x 1.5 x 44 mm 05135266001 1x 0.40 x 2 x 44 mm 05135267001 1x 0.50 x 3 x 44 mm 867/9 IPR TORX PLUS® bits 1x 1 IPR x 44x1.8 mm

Kraftform Kompakt Micro set for precision mechanical work. Suitable for the take-up of bits with 4 mm halfmoon drive (Wera series 9) and bits with 4 mm HIOS drive (Wera series 21). Electrical surface resistance of ≤ 109 Ohm for secure protection against electrostatic charge. Manufactured in accordance with DIN EN 61340-5-1. Compact handle/interchangeable blade system for fast blade change. Kaftform Micro handle with twist cap and free-turning zone for rapid twisting, making any time-consuming repositioning of the fingers unnecessary. Power zone with integrated soft zones for the transfer of higher tightening and loosening torque. Precision zone directly above the blade for the right angle for adjustment work. Bits for manual as well as power tool operations. Rapid fixing of the bit: just push the bit into the insert for automatic locking and a secure fit. To change the bit, simply push the sleeve forward and remove. Free-turning sleeve for simple guidance of the tool during the screwdriving process. ESD-safe tool thanks to surface resistance of ≤ 109 Ohm Kraftform Micro ESD bit holder Holder with anti-roll feature, rotating cap and quick-release chuck Bit holder suitable for the take-up of bits with 4 mm halfmoon or HIOS drive In a practical pouch Wera ESD Tools The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies. High protection The electric surface resistance of the Wera ESD material is ≤ 109 ohm. This securely protects components against electrostatic energy and associated damage. For Halfmoon and HIOS Bits Features a combination bit holder for both bits with Halfmoon and bits with HIOS drive. Kraftform Micro handle Multi-component screwdriver handle for ergonomic working. The precision zone The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work. The power zone The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw. Rotating cap and fast-turning zone The fast-turning zone just below the rotating cap allow rapid twisting. This makes time-consuming grip adjustments as with other conventional precision screwdrivers unnecessary. 05135973001 1013 Kraftform Micro ESD Bitholding screwdriver 05300004001 1x 97 mm 851/9 C J PH bits, halfmoon 05134605001 1x PH 000 x 44 x 1.5 mm 05135270001 1x PH 00 x 44 x 1.8 mm 05135272001 1x PH 0 x 44 x 1.8 mm 867/9 C TORX® bits, halfmoon 05135220001 1x TX 1 x 44 mm 05135221001 1x TX 2 x 44 mm 05135222001 1x TX 3 x 44 mm 05345352001 1x TX 4 x 44 mm 05345351001 1x TX 5 x 44 mm 867/9 C IP TORX PLUS® bits 05135230001 1x 1 IP x 44 mm 05135231001 1x 2 IP x 44 mm 05135232001 1x 3 IP x 44 mm 05326310001 1x 4 IP x 44 mm 867/9 IPR TORX PLUS® bits 1x 1 IPR x 44x1.5 mm 872/9 bits for Microstix® screws 05066850001 1x m x 44 mm 05066851001 1x 00 x 44 mm 05066852001 1x F x 44 mm 05066853001 1x 0 x 44 mm 800/9 C bits 05135265001 1x 0.23 x 1.5 x 44 mm 05135264001 1x 0.35 x 2.5 x 44 mm 869/9 Nutsetters 05135224001 1x 2.5 x 44 mm

Overview Convinient direction change thanks to switchover lever Fine-pitched ratchet mechanism and small return angle of 6 Very robust without any restriction on torque Quick-release chuck with Rapidator technology With Take it easy tool finder: colour coding by size. Article description: Combination tool consisting of a ratchet, bits, sockets and holder in a minimum of space. Ideal as a universal companion for a whole host of screwdriving applications. High quality bit holder with Kraftform Plus handle for pleasant, ergonomic working that prevents blisters and calluses. Hard gripping zones for high working speeds whereas soft zones ensure high torque transfer. Mini ratchet for rapid working when fastening jobs with a power tool or conventional hand tools are not feasible due to insufficient space. Rapid changeover from left to right direction and vice versa by using the switchover lever. Fast work possible by turning the thumbwheel (with the thumb) on the ratchet head. Simplest operation even with just one hand. Ergonomic ratchet head/lever: Kraftform geometry with perfectly shaped contact areas for the fingers. The direct bit take-up in the ratchet head makes for a mini tool design and is ideal for low working heights. The small return angle of 6° allows for precise work. Robust drop-forged, full steel design. Torque of over 65 Nm. The Rapidaptor bit holder with free-turning sleeve: can be used as an extension; for rapid bit change without any special tools – even the very smallest bits with just a single hand. Tough viscous bits for universal use. Sockets for both manual as well as power tool operations for almost all applications. “Take it easy” Tool Finder with colour coding according to size - for simple and rapid accessing of the required tool. Featuring a good grip to allow easy pick-up even with oily hands. Ball stop groove, for hex head bolts and nuts; chrome vanadium steel, matt chrome-plated.

Article description Wera compact tools enable the simultaneous use for the two types of fastening “manual” and “power tool”. The handle/interchangeable system in a compact design with various blade tips in a minimum of space make the user mobile and flexible. Suitable for bits with 1/4“ hexagon head drive as per DIN ISO 1173-C 6.3 und E 6.3 (ISO 1173) and Wera connecting series 1 and 4. Comes with an extension, bayonet, Rapidaptor technology. Kraftform handle with non-roll feature, multi-component for particularly ergonomic screwdriving. Integrated magazine for the storage of the bits. In this way, this set replaces a 6-piece screwdriver set and reduces the equipment required to a minimum. The profile and size of the bits are easy to recognise thanks to the Wera Take it easy Tool Finder with its colour coding and clearly visible imprint. Kraftform holder with bayonet blade and Rapidaptor quick-release chuck Kraftform handle with anti-roll feature, multi-component and integrated magazine Retractable bayonet blade Take it easy tool finder: colour coding according to profile and size In robust pouch 05051016001 889/4 R Rapidaptor Universal Bit Holder 05052504001 1x 1/4” x 100 mm 851/1 BTZ bits 05056420001 1x PH 1 x 25 mm 05056422001 1x PH 2 x 25 mm 855/1 BTZ bits 05056720001 1x PZ 1 x 25 mm 05056722001 1x PZ 2 x 25 mm 867/1 BTZ TORX bits 05066126001 1x TX 25 x 25 mm 800/1 BTZ bits 05056064001 1x 0.8 x 5.5 x 25 mm Hook and Loop Fastener Strip 70 1x 50x70 mm Why is the right tool so often not at hand? The reason: too many tools and overly-heavy tool bags can make it bothersome to carry them onsite. So for us it was a clear challenge: to design a tool that is suitable for a whole host of applications and can be easily taken along to jobs at other sites. Our solution: Kraftform Kompakt tools. A handle into which blades with a range of different profiles can be inserted. Compactly and protectively housed in a light and robust textile pouch or plastic box. Telescopic blade, integrated bit magazine, Rapidaptor technology The sets in the series Kraftform Kompakt 20 are really something. A 2 position telescopic blade can be retracted into the handle for confined space operation or extended for more reach. It can also be removed and used as a 100 mm bit holder in the power tool. Six bits are conveniently integrated into a push-button opening bit magazine. The Rapidaptor technology ensures rapid one hand bit changes, press-in auto bit lock and a secure positioning when used in power tools thanks to the free-turning sleeve. Handle/interchangeable blade system The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications. The telescopic blade I When the unique telescopic blade is lowered into the handle, fast, easy screw-driving action is possible, even in the tightest spots! The telescopic blade II By pushing the clamping sleeve, the telescopic blade can be extended out of the handle and the compact tool becomes a full-sized screwdriver. The telescopic blade III If the clamping sleeve is pushed again the telescopic blade can be taken out of the handle, and be used as a machine bit adaptor. Bits with Take it easy tool finder Take it easy tool finder with colour coding according to profiles and size stamp - for simple and rapid accessing of the required tool. Prevents hand injuries The outstanding design of the Kraftform handle that fits perfectly into the hand prevents hand injuries such as blisters and calluses.

Article description Wera compact tools enable the simultaneous use for the two types of fastening “manual” and “power tool”. The handle/interchangeable system in a compact design with various blade tips in a minimum of space make the user mobile and flexible. Suitable for bits with 1/4“ hexagon head drive as per DIN ISO 1173-C 6.3 und E 6.3 (ISO 1173) and Wera connecting series 1 and 4. Comes with an extension, bayonet, Rapidaptor technology. Kraftform handle with non-roll feature, multi-component for particularly ergonomic screwdriving. Integrated magazine for the storage of the bits. In this way, this set replaces a 6-piece screwdriver set and reduces the equipment required to a minimum. The profile and size of the bits are easy to recognise thanks to the Wera Take it easy Tool Finder with its colour coding and clearly visible imprint. Kraftform holder with bayonet blade and Rapidaptor quick-release chuck Kraftform handle with anti-roll feature, multi-component and integrated magazine Retractable bayonet blade Take it easy tool finder: colour coding according to profile and size In robust pouch 05051016001 889/4 R Rapidaptor Universal Bit Holder 05052504001 1x 1/4” x 100 mm 851/1 BTZ bits 05056420001 1x PH 1 x 25 mm 05056422001 1x PH 2 x 25 mm 855/1 BTZ bits 05056720001 1x PZ 1 x 25 mm 05056722001 1x PZ 2 x 25 mm 867/1 BTZ TORX bits 05066126001 1x TX 25 x 25 mm 800/1 BTZ bits 05056064001 1x 0.8 x 5.5 x 25 mm Hook and Loop Fastener Strip 70 1x 50x70 mm Why is the right tool so often not at hand? The reason: too many tools and overly-heavy tool bags can make it bothersome to carry them onsite. So for us it was a clear challenge: to design a tool that is suitable for a whole host of applications and can be easily taken along to jobs at other sites. Our solution: Kraftform Kompakt tools. A handle into which blades with a range of different profiles can be inserted. Compactly and protectively housed in a light and robust textile pouch or plastic box. Telescopic blade, integrated bit magazine, Rapidaptor technology The sets in the series Kraftform Kompakt 20 are really something. A 2 position telescopic blade can be retracted into the handle for confined space operation or extended for more reach. It can also be removed and used as a 100 mm bit holder in the power tool. Six bits are conveniently integrated into a push-button opening bit magazine. The Rapidaptor technology ensures rapid one hand bit changes, press-in auto bit lock and a secure positioning when used in power tools thanks to the free-turning sleeve. Handle/interchangeable blade system The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications. The telescopic blade I When the unique telescopic blade is lowered into the handle, fast, easy screw-driving action is possible, even in the tightest spots! The telescopic blade II By pushing the clamping sleeve, the telescopic blade can be extended out of the handle and the compact tool becomes a full-sized screwdriver. The telescopic blade III If the clamping sleeve is pushed again the telescopic blade can be taken out of the handle, and be used as a machine bit adaptor. Bits with Take it easy tool finder Take it easy tool finder with colour coding according to profiles and size stamp - for simple and rapid accessing of the required tool. Prevents hand injuries The outstanding design of the Kraftform handle that fits perfectly into the hand prevents hand injuries such as blisters and calluses.

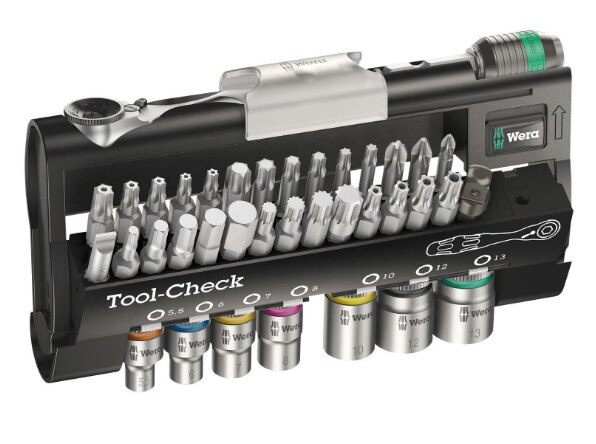

Article description Ratchet, bits and sockets in a minimum of space - as compact as it gets. Simple operation, even with just one hand, in confined working spaces. Drop-forged, full-steel design and fine-pitched mechanism with 60 teeth that allows a small return angle of 6° for precise working. Easy left/right switchover. Ergonomically designed ratchet head and lever. Suitable for ¼“ bit and socket take-up. The use of ¼” sockets is also possible with the Wera adaptor 870/1. Tough viscous bits for universal use. Manual and power tool socket insert (ISO 2725-Part 3) by Wera allows applications both in manual as well as power tools. Take it easy Tool Finder with colour coding according to size - for simple and rapid accessing of the required tool. Featuring a good grip to allow easy pick-up even with oily hands. Ball stop groove, for hex head bolts and nuts; chrome vanadium steel, matt chrome-plated. 1/4“ bit ratchet, tough viscous bits, Rapidaptor holder, adaptor and 1/4” sockets Ideal for working in confined spaces Tough viscous bits for universal use Use of 1/4“ sockets also possible with the Wera adaptor 870/1 Take it easy tool finder: colour coding according to profile and size Zyklop Mini The Zyklop Mini Ratchets For all difficult-to-access applications. The Zyklop Mini The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6° - ideal for precision work. Simple direction change Simple switching between left/right operations. Rapid screwdriving High working speeds can be attained with the Zyklop Mini bit ratchet. The thumb wheel is important, enabling more rapid screwdriving, and the lever of the Zyklop Mini only needs to be used for the final tightening of the screw. Slim design Its slim design makes it ideal for all particularly confined working situations. Take it easy tool finder system Take it easy tool finder system - with profile and size colour-coding for quick and easy tool selection. Colour-coded system for hexagon drive screws (L-Keys, Zyklop bit sockets), external hex drive screws and nuts (Joker wrenches, Zyklop sockets and Zyklop bit sockets with holding function), and TORX® drive screws (L-Keys, Zyklop bit sockets). Is such a small tool sufficiently resilient? The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool. Set contents: 870/1 051360000011) 1 x 1/4” x 25 mm 889/4/1 K 05052502001 1 x 1/4" x 50 mm 851/1 TZ PH 05056505001 1 x PH 1 x 25 mm 05056510001 1 x PH 2 x 25 mm 05056525001 1 x PH 3 x 25 mm 867/1 TZ TORX® 05066305001 1 x TX 10 x 25 mm 05066308001 1 x TX 15 x 25 mm 05066310001 1 x TX 20 x 25 mm 05066312001 1 x TX 25 x 25 mm 05066315001 1 x TX 30 x 25 mm 05066320001 1 x TX 40 x 25 mm 867/1 Z TORX® BO 05066500001 1 x TX 10 x 25 mm 05066505001 1 x TX 15 x 25 mm 05066510001 1 x TX 20 x 25 mm 05066515001 1 x TX 25 x 25 mm 05066525001 1 x TX 30 x 25 mm 800/1 TZ 05056225001 1 x 1 x 5.5 x 25 mm 840/1 Z Hex-Plus 05056315001 1 x 3 x 25 mm 05056320001 1 x 4 x 25 mm 05056325001 1 x 5 x 25 mm 05056330001 1 x 6 x 25 mm 05056335001 1 x 8 x 25 mm 860/1 XZN 05066150001 1 x M 4 x 25 mm 05066155001 1 x M 5 x 25 mm 05066160001 1 x M 6 x 25 mm 05066165001 1 x M 8 x 25 mm 8790 HMA 05003504001 1 x 5.5 x 23 mm 05003505001 1 x 6 x 23 mm 05003506001 1 x 7 x 23 mm 05003507001 1 x 8 x 23 mm 05003509001 1 x 10 x 23 mm 05003511001 1 x 12 x 23 mm 05003512001 1 x 13 x 23 mm

The Proskit MT-7064 PoE & LAN Cable Tester is an advanced, multifunctional cable tester designed for testing Ethernet (LAN) cables as well as Power over Ethernet (PoE) cables. It is an essential tool for network professionals, electricians, and technicians who need to verify the integrity and performance of network cables, especially in environments where PoE technology is used for powering devices like IP cameras, wireless access points, and VoIP phones. Key Features: PoE (Power over Ethernet) Testing: The PoE testing capability is one of the standout features of the Proskit MT-7064. It can detect whether Power over Ethernet (PoE) is present on a cable, which is essential for troubleshooting and verifying installations where both power and data are transmitted through a single Ethernet cable. The tester can check if the cable is capable of delivering power (i.e., whether PoE voltage is present), ensuring that devices powered by PoE will receive adequate voltage and current for proper operation. LAN Cable Testing: The MT-7064 tests standard Ethernet cables (such as Cat 5, Cat 5e, Cat 6, and Cat 6a) for correct wiring. It helps identify any issues in the wiring configuration, such as incorrect pinouts, miswiring, shorts, and open circuits. The tester checks the cable for proper wiring configurations, including T568A and T568B standards. LED Indicators for Cable Status: The tester is equipped with LED indicators that display the status of each individual wire in the Ethernet cable. Green LEDs typically indicate correct wiring, while red LEDs or a lack of illumination signal issues like miswiring or open circuits. This provides users with clear visual feedback, helping them pinpoint exactly where problems exist in the cable. Multifunctional Testing Capabilities: In addition to basic cable testing, the MT-7064 is capable of more advanced testing, such as detecting: PoE Voltage and Power: Checking whether PoE voltage is being supplied to the cable. Data Transmission Integrity: Verifying that the Ethernet cable supports proper data transmission and that no wires are missing or incorrectly connected. Short Circuits and Open Circuits: The tester identifies short circuits and open circuits in the cable, helping to quickly troubleshoot faulty connections. Correct Cable Configuration: Verifies the correctness of the cable configuration (T568A/B) for network standards. Remote Testing: The MT-7064 comes with a remote unit, which allows users to test long cables without needing to have both ends near the main tester. This remote unit is particularly useful in large installations or when cables are already deployed and connected. Compact and Easy-to-Use Design: The compact size and ergonomic design of the Proskit MT-7064 make it highly portable and easy to handle. Its simple layout ensures that users can easily navigate through the various testing modes with minimal setup. It’s designed for fast, on-the-go testing, ideal for technicians who need to test multiple cables during a workday. LCD Display: The tester features a clear LCD display that provides visual feedback on the PoE voltage and cable testing results. It allows the user to see information such as whether the cable is functioning properly, whether PoE power is present, and any errors in wiring configuration. Battery-Powered: The tester is powered by standard batteries, making it portable and suitable for field use where power sources may not be readily available. It is designed for low power consumption to maximize battery life during long testing sessions. Durability: The MT-7064 is built with durable materials to withstand the wear and tear of regular field use. It is compact yet sturdy, making it a reliable tool for technicians working in different environments. Overload Protection: The tester is designed with overload protection to safeguard against damage in case of incorrect usage or testing beyond the recommended limits. Applications: Network Installations: Ensures that Ethernet and PoE cables are correctly wired and capable of delivering both data and power for devices. Troubleshooting: Ideal for diagnosing issues with Ethernet cables, identifying faulty cables or incorrect wiring configurations, and checking for PoE power delivery. IT and Telecommunications: Essential for network technicians and IT professionals setting up or maintaining networks, especially those that rely on PoE for powering devices like security cameras or access points. Home and Office Networking: Useful for home and office network installations, where both data and power need to be transmitted through a single cable. Field Testing: Perfect for on-site testing and troubleshooting of pre-installed cables or cables in large, complex networks. Summary: The Proskit MT-7064 PoE & LAN Cable Tester is a versatile, multifunctional tool designed to test both Ethernet cables and Power over Ethernet (PoE) cables. With its PoE voltage detection, cable wiring verification, and ability to identify shorts and open circuits, it’s a must-have tool for anyone working with network cables. The compact design, remote testing capability, and LCD display ensure ease of use and portability, making it an ideal choice for network professionals, electricians, and technicians. Whether you are installing new network equipment or troubleshooting existing cables, the MT-7064 helps ensure that your Ethernet and PoE cables are correctly wired and ready for optimal performance.

The Proskit MT-7031 Mini LAN Cable Tester is a compact, portable device designed to quickly and accurately test Ethernet cables (LAN cables) to ensure they are wired correctly and functioning properly. This tool is essential for anyone working with network setups, such as IT professionals, electricians, or technicians. It allows users to verify cable integrity, check wiring configurations, and troubleshoot connection issues in a variety of networking environments. Key Features: Compact and Portable Design: The Proskit MT-7031 is designed to be small and lightweight, making it highly portable and easy to carry around for on-the-go testing. It’s ideal for use in tight spaces or when conducting fieldwork, ensuring ease of transport in toolkits or pockets. Ethernet Cable Testing: The MT-7031 is specifically designed to test Ethernet cables, including Cat 5, Cat 5e, Cat 6, and other similar LAN cables. It ensures the cable is wired according to the correct standard, such as T568A or T568B, and can detect common wiring issues. Testing for Correct Wiring: The device checks the wiring sequence of the cable to ensure that all wires are correctly connected. This helps identify if there are issues with the wiring, such as incorrect pinouts or open circuits, which could lead to network connection problems. The tester indicates whether the cable is properly wired for straight-through or crossover configuration. LED Indicators: The tester features LED indicators that visually display the wiring status of each individual wire inside the Ethernet cable. The lights show whether the cable is properly wired, helping users to quickly diagnose problems. Green lights usually indicate correct wiring. Red lights or no lights may indicate miswiring or open connections, signaling where the issue lies. Short Circuit and Open Circuit Detection: The Proskit MT-7031 can detect short circuits and open circuits within the cable, which is vital for ensuring a reliable network connection. If any wire is not connected or is incorrectly wired, the tester will indicate the specific problem. Simple and Easy to Use: The tester is straightforward to use, requiring no special knowledge or complex settings. Simply plug one end of the LAN cable into the main tester and the other end into the remote unit (which may be a detachable unit in some models). The tester will then provide instant feedback on the status of the cable. Remote Unit (Optional): In some versions of the MT-7031, the tester may include a remote unit that allows you to test cables without needing both ends to be near the main tester. This is useful when testing long cables or in large installations where the two ends of the cable are far apart. Battery-Powered: The Proskit MT-7031 operates on standard battery power, ensuring portability and ease of use in locations where a power source may not be readily available. It’s designed to conserve power, extending battery life during testing. Wide Application: This tester is ideal for a variety of environments, including: Network Installations: Ensuring proper wiring of Ethernet cables in network infrastructure. Home and Office Networking: Verifying LAN cables for proper connection in homes, offices, or small businesses. Troubleshooting: Helping network administrators and technicians quickly diagnose and repair faulty cables. IT Support: Ensuring that cables are correctly wired during computer or equipment setup. Durable Construction: The tester is built with durability in mind, designed to withstand the wear and tear of regular use in professional environments. The small yet sturdy casing protects the internal components from damage during transport or in rugged conditions. Applications: Network Testing: Ideal for verifying the functionality of LAN cables before installation or during troubleshooting. Installation: Useful for testing and certifying new Ethernet cables during network setup or maintenance. Field Use: A compact, portable solution for IT professionals, allowing them to test cables in various settings, such as data centers, offices, or homes. Cable Diagnostics: Quickly diagnosing issues with existing cables, such as miswiring, shorts, or open circuits, saving time in repairs. Summary: The Proskit MT-7031 Mini LAN Cable Tester is a compact, reliable, and easy-to-use tool designed to test Ethernet cables for correct wiring and functionality. With LED indicators for each wire, the ability to detect short and open circuits, and simple operation, it’s an essential tool for professionals who need to verify LAN cable integrity. Its portable design makes it an excellent choice for technicians working in the field or on-site installations, ensuring that Ethernet cables are properly configured for optimal network performance.

The Proskit MT-3209 3-5/6 AC/DC Digital Clamp Meter is an advanced, high-precision tool designed for measuring both AC and DC electrical parameters, offering versatility and reliability in a range of electrical testing and troubleshooting applications. Below is a detailed description of the features and specifications of the MT-3209. Key Features: Wide Measuring Range: The Proskit MT-3209 offers a 3-5/6 digit display, which means it can display up to 5999 counts. This high level of precision allows for accurate measurements across a wide range of values, making it suitable for both low and high current measurements. AC/DC Current Measurement: The meter can measure AC (Alternating Current) and DC (Direct Current) currents with a wide range, typically from a few milliamps (mA) to several hundred amps (A). This feature is especially useful for professionals working in a variety of environments, from residential wiring to industrial electrical systems. AC/DC Voltage Measurement: It can measure both AC and DC voltages across a range of circuits, including household electrical systems, appliances, and industrial equipment. The ability to measure both types of voltages makes this meter a versatile tool for troubleshooting electrical circuits. Resistance Measurement: The MT-3209 also measures resistance in circuits, with a broad range that allows users to test for continuity, resistance in wires, and check the integrity of electrical components. True RMS Measurement: The True RMS (Root Mean Square) measurement capability allows for accurate readings of non-sinusoidal waveforms, which are commonly found in modern electrical devices and complex industrial machinery. This feature ensures the meter provides precise readings, even when the current or voltage waveform is distorted. Continuity Testing: The continuity function checks for an open circuit or a break in the circuit, emitting an audible beep when continuity is present. This is useful for quickly diagnosing faults in wires and circuits. Data Hold Function: The Data Hold function freezes the displayed value, making it easier to record measurements or inspect them more closely without needing to keep the meter in place. Large LCD Display with Backlight: The meter is equipped with a large LCD display that provides clear and easy-to-read results. The backlight feature allows users to work in low-light conditions, ensuring visibility in dark or confined spaces. Auto Range Function: The auto-range function automatically adjusts the meter’s range based on the measurement, making it easy to use by eliminating the need for manual range selection. This simplifies the process and ensures that the correct range is used for accurate readings. Jaw Size and Clamp Design: The clamp jaw has a large opening, which can measure current in larger conductors without the need to disconnect them. This feature allows users to measure current without interrupting the circuit, making it convenient and time-saving for electrical diagnostics. Overload Protection: The MT-3209 is designed with overload protection, ensuring the safety of the device and user in the event of measuring currents or voltages beyond the meter's rated capacity. Built-in Temperature Measurement (Optional): In some models or with certain accessories, the MT-3209 may also include the ability to measure temperature. This adds another layer of functionality, allowing users to monitor the temperature of electrical components, which is useful in assessing the condition of circuits, equipment, and machinery. Battery-Powered: The meter operates on standard battery power, providing portability and ease of use in various settings, such as the field, workshops, and remote locations. Applications: Electrical Installation and Maintenance: Ideal for electricians and maintenance personnel for measuring and troubleshooting electrical systems in residential, commercial, and industrial environments. Automotive and HVAC Systems: Useful for diagnosing electrical issues in vehicles or HVAC systems, including current draw, voltage levels, and resistance of components. Power Distribution Systems: Essential for monitoring and testing circuits and power systems in industrial facilities. Energy Audits: Great for energy audits where current and voltage measurements are needed to assess the efficiency of electrical systems. Home Appliances: Used for testing the operation and safety of home appliances and electronics. Safety Features: CAT III 600V Rating: The Proskit MT-3209 is rated for CAT III 600V, meaning it is safe to use on equipment that operates at voltages up to 600V, including residential and industrial electrical systems. Double Insulation: Ensures added safety when working with electrical circuits, providing protection against accidental shocks. Summary: The Proskit MT-3209 3-5/6 AC/DC Digital Clamp Meter is a versatile and highly accurate tool that is perfect for measuring current, voltage, resistance, and other electrical parameters. Its True RMS capabilities, wide measurement range, and large display make it suitable for both simple and complex electrical tasks. The inclusion of features like data hold, backlight display, overload protection, and auto-ranging makes this clamp meter a reliable and essential tool for professionals working in a variety of industries.
