wera rachet screwdriver bits set

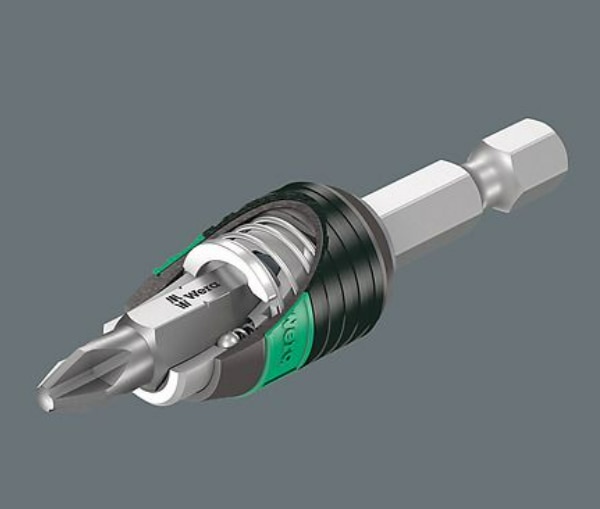

Article description Rapidaptor universal holder for bits with 1/4“ external hexagon drive as per DIN ISO 1173-C 6.3 and E 6.3 (ISO 1173). The floating, fast-rotating magnet sleeve holds even long and heavy screws firmly. The Rapidaptor allows mounting the bits without using the sleeve. The bit is removed by simply pushing it forward - for lightning-fast bit changes, even with just one hand. 1/4” hexagonal, suitable for screwdriver machines with mounting as per DIN ISO 1173-F 6.3. Rapidaptor technology for rapid bit change Rapidaptor universal holder with ring magnet for bits with 1/4“ hexagon drive Ring magnet and stop sleeve for secure fit of the screw on the holder 1/4” hexagon drive Code inch mm inch inch mm 05052490001 1/4“ 57 2 1/4” 1/4“ 16 Ring magnet Rapidaptor Special design powerful ring magnet, for larger and heavier screws. Ideal for overhead work, too. Rapidaptor with ringmagnet The floating, free-turning magnetic sleeve securely holds even large and heavy screws to enable immediate application. There is no need to hold the screw when applying the tool - something which can be dangerous and painful. Also ideal for overhead work. Rapidaptor holder Rapid bit change without needing any additional tools. One-hand operation with a freely spinning sleeve for simplified guidance of the tool. Also available in a BiTorsion design. Rapid-spin The free-turning sleeve allows screw steadying at the start of the screwdriving process. This makes it easier to apply the tool to the screw and prevents slipping. It can also be used as a short extension for ¼” applications e.g. in combination with the Wera Zyklop Ratchets. Single-hand function Every function of the Rapidator quick-release chuck, such as inserting or releasing bits, can be carried out with one hand. This is faster, more economical and more ergonomic. There are no unnecessary manoeuvres.

Article Description Zyklop ratchet with 1/4“ drive. The fine toothing with 72 teeth allows for a low return angle of 5°. The ratchet head swivels freely and can be locked in any position using the slide switch on both sides. Unproblematic working with plenty of hand space even in very narrow or difficult-to-reach installation situations. The pre-defined positions at 0°, 15° and 90° to the left and right guarantee safe working without the ratchet head slipping. In the 0° position, the ratchet with adapter and bit can be used like a conventional screwdriver. The flywheel design helps accelerate the screwdriving process. The rotationally symmetrical design of the Kraftform handle and the fast-rotating sleeve support rapid turning. Thanks to the shape of the Kraftform handle being perfectly adapted to the hand, hand injuries such as blisters and calluses are avoided. The hard materials used for the handle guarantee quick hand switching without the risk of the skin ”sticking“ to the handle. The softer, ”non-slip“ zones offer transmission of high forces without loss. For 1/4” square head socket wrench inserts as well as 1/4“ connectors with square head drive, with ball lock. Fine-tooth design allows a small return angle of 5° Freely pivoting ratchet head, push button release and left/right switchover Flywheel design and easy-to-grip free-turning sleeve for very high working speeds The Wera Zyklop Speed ratchet combines the advantages of five different types of ratchet in one. And it is a really fast mover Can also be used as a screwdriver Incredibly fast ¼” Zyklop Speed ratchet with pivoting ratchet head and 5 predefined locking positions Zyklop “6 in 1” Fine-tooth ratchet Flex-head ratchet Angle ratchet Quick-release ratchet Power ratchet Screwdriver Code 0507326000 1x 1/4"x152 mm Pivots freely The ratchet head pivots freely and can be locked into any defined position by using the slide switch that is positioned on either side. It is even possible to work in very confined and difficult-to-access areas with enhanced hand clearance. The predefined locking at 0°, 15° and 90°, both to the right and left, ensure safe working without any slipping of the ratchet head. Fast movers The Zyklop Speed ratchets are really fast movers. The gyrating mass design means that screwdriving is accelerated. The rotation-symmetric structure of the Kraftform handle and the free-turning sleeve reinforce this rapid twisting process, particularly when the ratchet does not engage due to too little resistance in the thread. Simple direction change All Zyklop Speed ratchets feature a thumbwheel that can be used to quickly and easily switch between clockwise and anticlockwise rotation, at any position. No complicated handling, no loss of time! Low return angle The reversible ratchet with 72 fine-pitched teeth has a low return angle of only 5°. This short stroke allows fast and precise work in all types of installation. Screwdriver The ratchet can be used as a conventional screwdriver in the 0° position by attaching a bitholding adaptor and a bit. Ball lock The ball lock holds the sockets and attachments securely, ensuring safe working. A changeover into any predefined position is completed by simply pressing the release button - this is even the case in the 90° position.

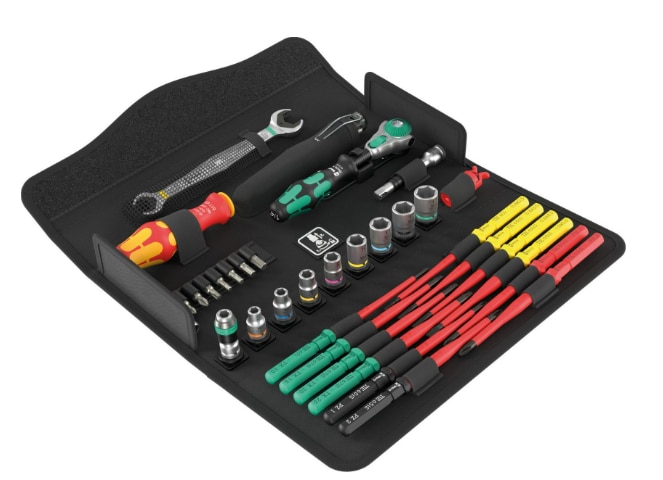

Compact tool set with the 35 most important screwdriving tools for maintenance work both indoors as well as outdoors. One Kraftform 817 VDE bladeholding screwdriver solely for Wera VDE blades; 12 VDE blades (each 157 mm length) with Take it easy tool finder with colour coding by profile and laser-engraved size indication; 1 Joker double open-end wrench with holding function, limit stop, small return angle and extremely gripping teeth; the incredibly fast ¼“ Zyklop Speed ratchet and accessories; 8 manual and power tool sockets, sizes 5.5-13, 1 universal bit holder; 7 bits in a length of 25 mm; 1 screw gripper for firmly holding screws; 1 single-pole phase tester 247; textile box, very robust and durable; can be positioned upright in the workshop shelf for convenient storage; additional surface protection thanks to the textile outer material; low weight and volume for simplified mobility. Incredibly fast ¼” Zyklop Speed ratchet with pivoting ratchet head and 5 predefined locking positions Manual and power tool sockets (non-impact) with ball-stop groove and knurling at lower end for more grip Joker double open-end wrench with holding function, limit stop, small return angle and extremely gripping teeth VDE-insulated Kraftform 817 VDE bladeholding screwdriver with anti-roll protection VDE blades (157 mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: colour coding by profile and laser-engraved size indication Set in robust textile box Kraftform Kompakt W 1 Maintenance The perfect set for diverse maintenance jobs both indoors as well as outdoors - applications: electronics, mechatronics, building technology, photovoltaic etc. Take it easy Tool Finder The Kraftform Kompakt VDE blades are equipped with the Take it easy Tool finder. The colour coding by profile and the laser engraved size indication make it easy to identify the required too quickly. The handle/blade system – Kraftform Kompakt VDE The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications. Zyklop “6 in 1” Fine-tooth ratchet Flex-head ratchet Angle ratchet Quickrelease ratchet Power ratchet Screwdriver Manual and machine sockets The manual and machine sockets can be used both for hand and power tools use (non-impact) Users need just one socket set for all applications. Take it easy tool finder system Take it easy tool finder system - with profile and size colour-coding for quick and easy tool selection. Colour-coded system for hexagon drive screws (L-Keys, Zyklop bit sockets), external hex drive screws and nuts (Joker wrenches, Zyklop sockets and Zyklop bit sockets with holding function), and TORX® drive screws (L-Keys, Zyklop bit sockets). Double open-ended wrench The Joker double open-ended wrench is ideally suited for locking down nuts and bolts.

Article description Premium bitholding screwdriver. The Rapidaptor quick-release chuck allows for lightning-fast bit changes without any extra tools. The strong permanent magnet holds the bits firmly. Kraftform Plus handle for comfortable ergonomic screwdriving, which avoids blisters and calluses. Hard handle zones for high working speeds, while soft handle zones guarantee a high torque transfer. Suitable for bits with 1/4“ external hexagon drive as per DIN ISO 1173-C 6.3 and E 6.3 (ISO 1173). Bit holder with Rapidaptor quick-release chuck for bits with 1/4” hexagon drive Multi-component Kraftform handle for fast and ergonomic screwdriving Hexagonal anti-roll feature against rolling away Rapidaptor technology for rapid change of the bits or blades Strong permanent magnet holds the bits absolutely securely Code inch mm 05051272001 1/4“ 90 Kraftform The basic idea for the prototype of the Kraftform handle – that the hand should dictate the design – has, right through to today, proved to be correct. In cooperation with the internationally recognised Fraunhofer IAO Institute, Wera developed a screwdriver handle designed to match the shape of the human hand as long ago as the 1960s. After a long development phase, the Wera Kraftform handle was launched to the market in 1968. It has been optimised through the years with new technologies, but has kept its proven shape. After all, the human hand has not changed either. Prevents hand injuries The outstanding design of the Kraftform handle that fits perfectly into the hand prevents hand injuries such as blisters and calluses. Rapid-in and self-lock The bit can be pushed into the adaptor without moving the sleeve. The lock is activated automatically as soon as the bit is applied to the screw. Bits are held securely and wobble-free. Rapid-out Simply push the sleeve forward to change the bit. The spring mechanism lifts the bit off the magnet and unlocks the tool. The bit can be easily removed. The rapid-out function makes it easy to remove even the smallest bits without extra tools. Chuck-all The Rapidaptor quick-release chucks hold 1/4” DIN ISO 1173-C 6,3 and E 6,3 as well as Wera series 1 and 4 bits. Rapid-spin The free-turning sleeve allows screw steadying at the start of the screwdriving process. This makes it easier to apply the tool to the screw and prevents slipping. It can also be used as a short extension for 1/4" applications e.g. in combination with the Wera Zyklop Ratchets. Single-hand function Every function of the Rapidator quick-release chuck, such as inserting or releasing bits, can be carried out with one hand. This is faster, more economical and more ergonomic. There are no unnecessary manoeuvres.

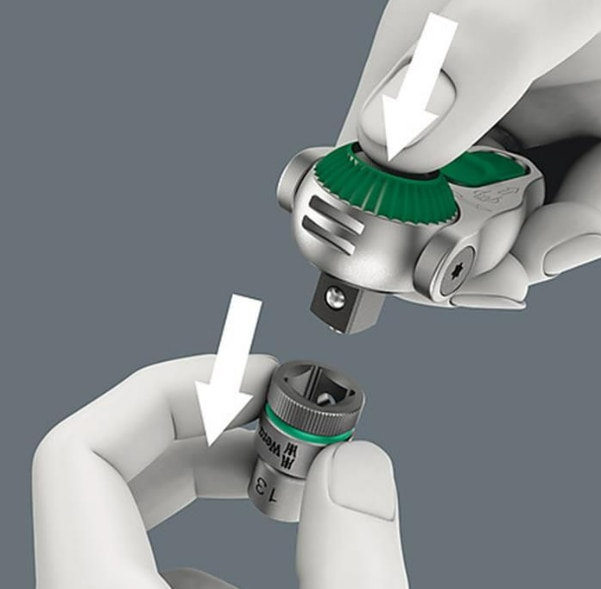

Ratchets and screws in a Kraftform Kompakt format. These drop-forged, full-steel ratchets, Zyklop Mini 1 and 2, combine filigree design with incredible robustness. For particularly rapid screwdriving in confined working situations. Zyklop Mini 1 or Zyklop Mini 2 can be used whenever screwdriving with power tools or conventional hand tools is unfeasible for lack of space. 1 bit ratchet Zyklop Mini 1; suitable for the take-up of bits with ¼“ hexagon head drive as per DIN ISO 1173-C 6.3 and E 6.3 and Wera connecting series 1 and 4; also possible to use ¼” sockets by attaching the Wera adaptor 870/1. 1 socket ratchet Zyklop Mini 2; suitable for the direct attachment of Wera Zyklop special sockets 8790 FA. Drop-forged, full-steel ratchet design For screwdriving in very confined working situations Zyklop sockets 8790 FA for direct insertion in the Zyklop Mini 2 Bit holder, 9 sockets, 14 bits and 1 adaptor In robust textile box The Zyklop Mini Ratchets For all difficult-to-access applications. The Zyklop Mini The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6° - ideal for precision work Rapid screwdriving High working speeds can be attained with the Zyklop Mini bit ratchet. The thumb wheel is important, enabling more rapid screwdriving, and the lever of the Zyklop Mini only needs to be used for the final tightening of the screw. Slim design Its slim design makes it ideal for all particularly confined working situations. Is such a small tool sufficiently resilient? The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool. What parts can be connected to the Zyklop Mini 1? Bits and sockets. Bits can be connected directly. However, a holder can be connected first and then the bit can be attached to this. This then serves as an extension with a free-turning sleeve. An adaptor e.g. Wera 870/1 is needed for sockets - ¼“ hexagonal on a square drive (included in the Bit-Check and with the individual Zyklop Mini 1 in the set). Zyklop Mini 2 The Zyklop Mini 2 is suitable for the direct attachment of the special Wera Zyklop sockets 8790 FA. These sockets feature a very low height, ideal for confined working spaces. Set Contents : 05135918001 8001 A Bit Ratchet ¼” 1x 1/4“x87 mm 8005 Zyklop Mini 2 Ratchet 05003660001 1x 107 mm 813 Bitholding screwdriver 05051274001 1x 1/4” x 78 mm 870/1 Adaptor 05136000001 1x 1/4“ x 25 mm 851/1 Z bits 05072070001 1x PH 1 x 25 mm 05072072001 1x PH 2 x 25 mm 855/1 Z bits 05072080001 1x PZ 1 x 25 mm 05072082001 1x PZ 2 x 25 mm 867/1 TORX bits 05066485001 1x TX 10 x 25 mm 05066486001 1x TX 15 x 25 mm 05066487001 1x TX 20 x 25 mm 05066488001 1x TX 25 x 25 mm 05066490001 1x TX 30 x 25 mm 05066491001 1x TX 40 x 25 mm 840/1 Z bits 05056315001 1x 3 x 25 mm 05056320001 1x 4 x 25 mm 05056325001 1x 5 x 25 mm 05056330001 1x 6 x 25 mm 8790 FA Zyklop socket with 1/4” and Hexagon 11 drive 05003665001 1x 4 mm 05003667001 1x 5 mm 05003668001 1x 5.5 mm 05003669001 1x 6 mm 05003670001 1x 7 mm 05003675001 1x 8 mm 05003690001 1x 10 mm 05003684001 1x 12 mm 05003685001 1x 13 mm Hook and Loop Fastener Strip 120 1x 120x50 mm
